ST504

产品图片

PRODUCT IMAGE

产品图片

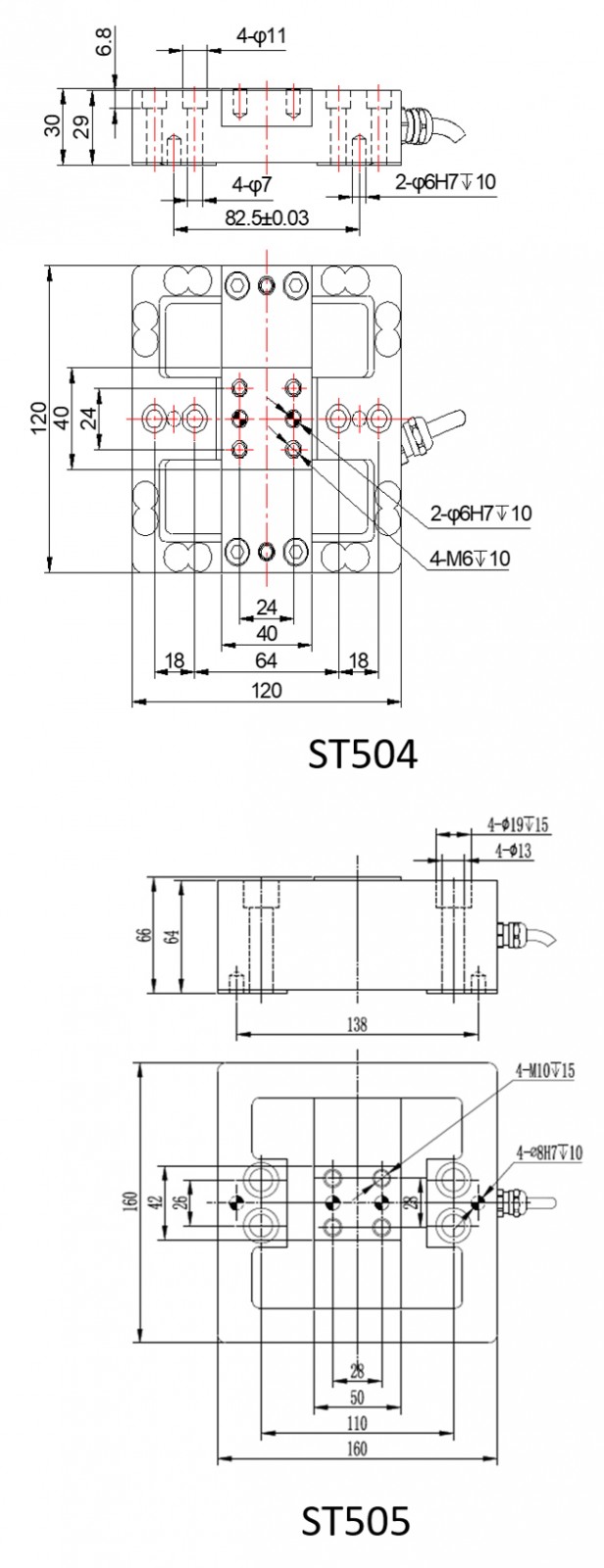

安装尺寸

MOUTING DIMENSION

安装尺寸

特点与用途

FEATURES & APPLICATIONS

精度高、抗偏载能力强

容易安装，IP66

接受定制规格

机器手臂精密控制、曲面研磨抛光，加工中心精雕加工、医疗设备精密测试

High accuracy with strong ability of anti-side force

Easy to install, IP66 protection

Dimension is customizable

Precision control of mechanical arm, grinding and polishing for Spherical, carved processing of machining center, precision testing of medical equipment,

技术参数

SPECIFICATIONS

参数	Specifications	技术指标/Technique
额定容量	Capacity（N）	X: 50/100/200/500/1000/2000/5000/10000/20000/30000 Y: 50/100/200/500/1000/2000/5000/10000/20000/30000 Z: 50/100/200/500/1000/2000/5000/10000/20000/30000
输出灵敏度	Rated output	≈1.0mV/V
零点输出	Zero balance	±2%F.S.
非线性	Non-linearity	0.1%F.S.
精度	precision	0.1%F.S.
重复性	Repeatability	0.1%F.S.
蠕变（30min）	Creep(30min)	0.1%F.S.
温度灵敏度漂移	Temp.effect on output	0.1%F.S./10℃
零点温度漂移	Temp.effect on zero	0.1%F.S./10℃
输入电阻	Input impedance	780±20Ω
输出电阻	Output impedance	700±10Ω
绝缘电阻	Insulation	≥5000MΩ/100VDC
激励电压	Recommended excitation	5~12V
最大激励电压	Maximum excitation	15V
温度补偿范围	Compensated temp range	-10~40℃
工作温度范围	Operation temp range	-20~75℃
安全超载	Safe overload	150%F.S.
极限超载	Ultimate overload	300%F.S.
电缆线尺寸	Cable size	Φ6×4000mm
防护等级	IP Class	IP66
