用于需要将测力信号转换为数字通讯信号、标准模拟输出信号及简单控制的场合

模拟输出信号可选择4-20mA、0-10V，数字通讯接口可选择RS485或RS232

双排6位LED数码管分别显示实时测量值、峰值、输出电流值、I/O状态信息

控制器带有上限、中限、下限界限判断功能

I/O有2入3出，可自定义输入输出端口功能

可通过上位机进行驱动控制器输出，可部分替代PLC

控制器供电电源采用DC24V供电，压宽±5V，更加安全稳定

开孔式面板安装，面板面积仅70mm（宽）×55mm（高）

Use for turning the analog force signal to digital output, the standard analog output signal and simple control of the occasion

Analog output signal could be  4-20mA, 0-10V,  digital communication interface as RS485 or RS232

Dual 6-digit LED digital tube shows real-time measurement, peak, output current value, I / O status information

Controller with the upper, middle and lower limits judgment

I / O 4 input and 6 output, you can customize the input and output port function

Can be driven by the host computer controller output, can be part of the alternative PLC

DC24V power supply, voltage ± 5V, more secure and stable

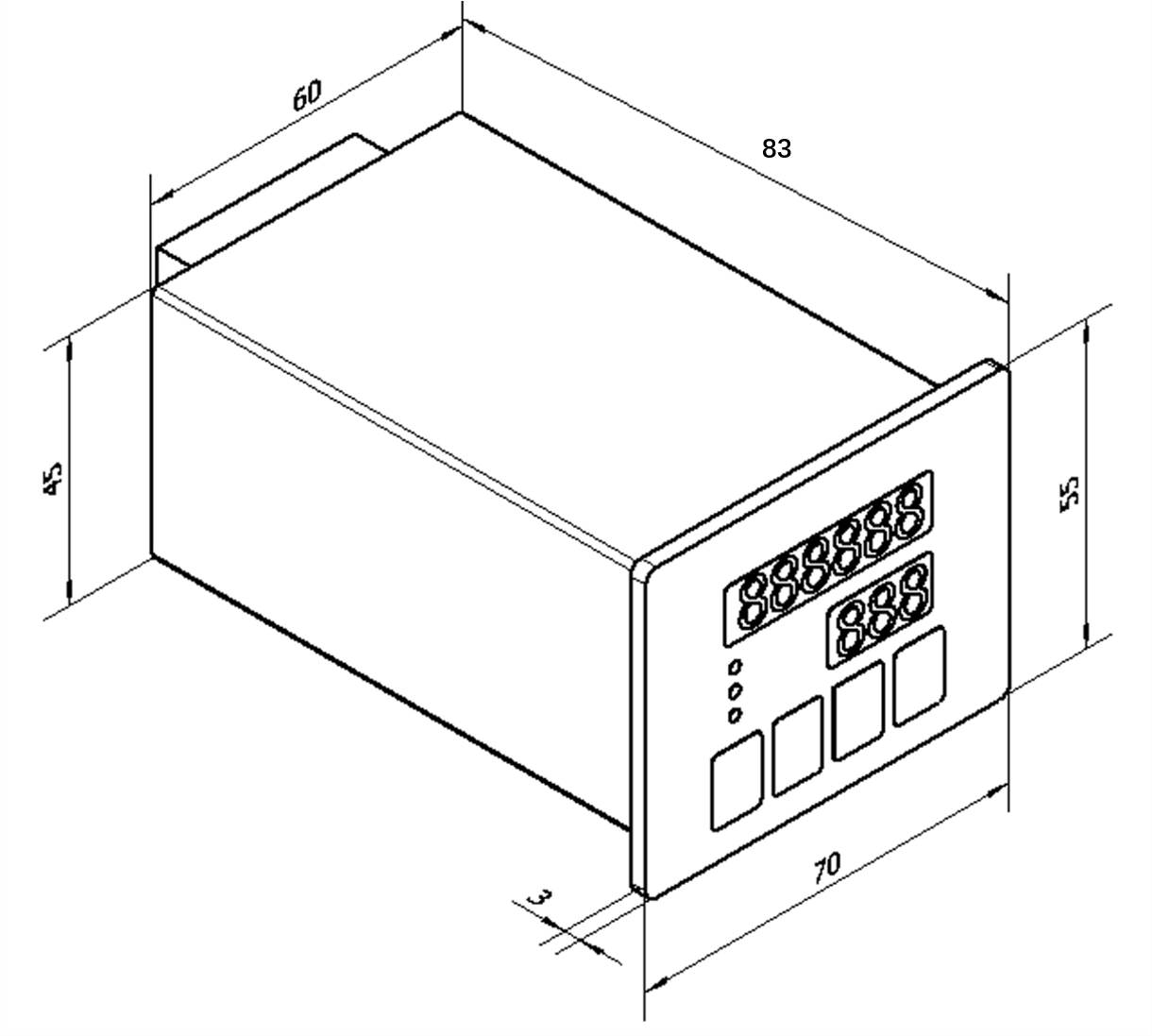

Dimension of panel is only 70mm (width) × 55mm (high)
