ST-25

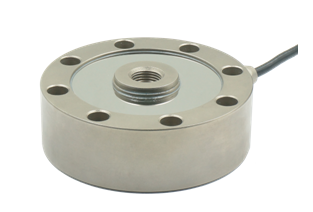

产品图片

PRODUCT IMAGE

产品图片

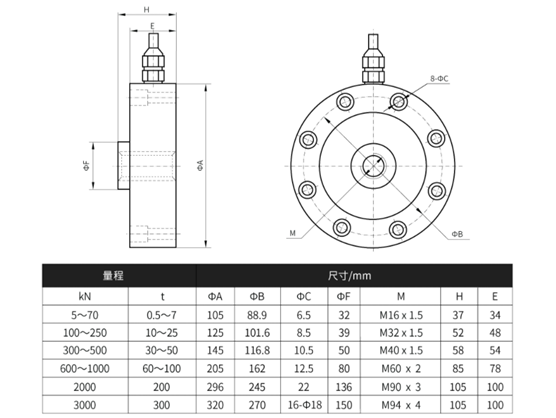

安装尺寸

MOUTING DIMENSION

安装尺寸

特点与用途

FEATURES & APPLICATIONS

轮辐式传感器

合金钢/不锈钢材料

拉压双向，量程可定制

主要应用于汽车压装、自动化组装、3C产品测试、新能源产品组装、医疗检测、机器人领域，模具组装等工业测控系统，也适用于试验机，汽车衡，料斗秤，各种工业称重系统等

Pancake type load cell

Alloy steel / stainless steel

Tension and compression application， capacity is able to be customized

Mainly used for automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system； this also is applicable to testing machine, truck scale, hopper scale, a variety of industrial weighing systems

High dynamic response frequency

技术参数

SPECIFICATIONS

参数	Specifications	技术指标/Technique
额定容量	Capacity	0.1,0.2,1,2,3,5,10,15,20,25,30t
输出灵敏度	Rated output	2.0±1%mV/V(0.1,0.2t) 3.0±1%mV/V(1~30t)
零点输出	Zero balance	±1% F.S.
非线性	Non-linearity	0.03%F.S.
滞后	Hysteresis	0.03%F.S.
重复性	Repeatability	0.03%F.S.
蠕变（30min）	Creep(30min)	0.03%F.S.
温度灵敏度漂移	Temp.effect on output	0.02%F.S./10℃
零点温度漂移	Temp.effect on zero	0.02%F.S./10℃
输入电阻	Input impedance	780±10Ω
输出电阻	Output impedance	700±5Ω
绝缘电阻	Insulation	≥5000MΩ/100VDC
激励电压	Recommended excitation	5~15V
最大激励电压	Maximum excitation	20V
温度补偿范围	Compensated temp range	-10~40℃
工作温度范围	Operation temp range	-10~70℃
安全超载	Safe overload	150%F.S.
极限超载	Ultimate overload	200%F.S.

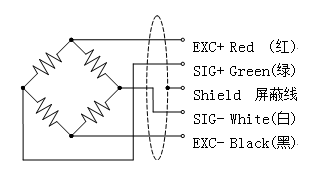

电缆线尺寸	Cable size	φ5×6000mm
防护等级	IP Class	IP67
