电阻应变为敏感元件和集成电路构成的一体产品;
精度高，性能稳定可靠;
没有集流环等磨损件，可高速长时间运转，输出正反转扭矩信号;
两端均为键连接;
最高转速不超过4000转/分钟
4-20MA 输出。
Constituted by Strain gauge sensitive components and integrated circuits;
High precision with stable and reliable performance;
This sensor can be operated long-term in high-speed without wear ring and other wear parts, the output is OK for positive and negative torque signal;

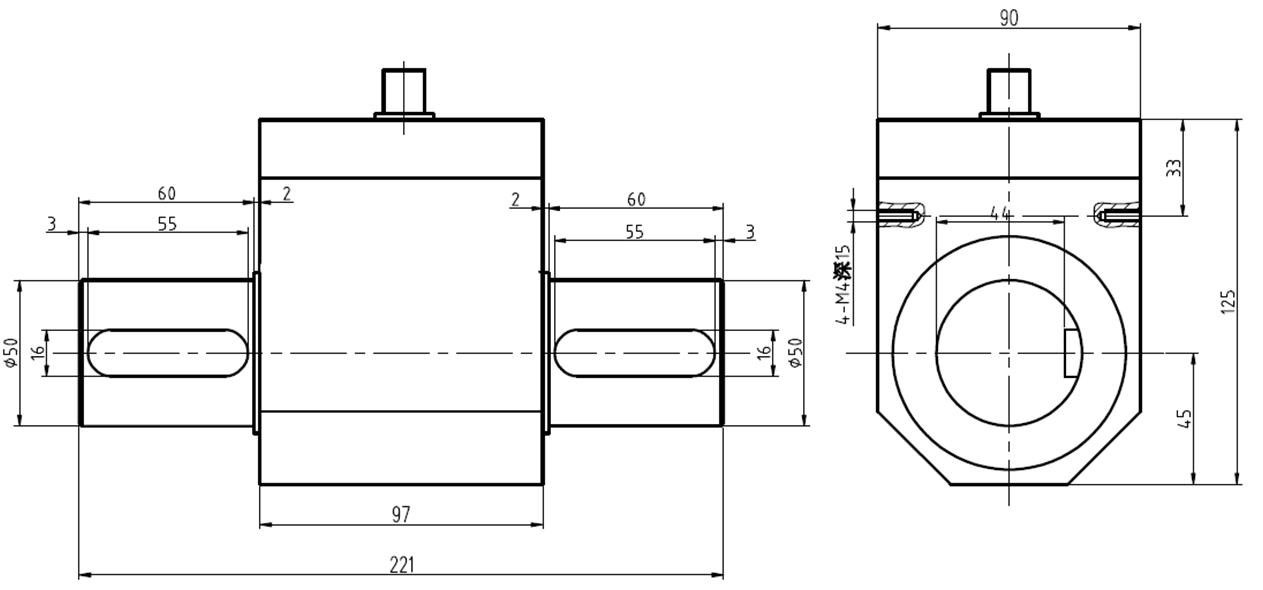

Both ends are keyed;
Maximum speed of torque cannot over 4000 r / min.
参数 | Specifications | 技术指标/Technique |
额定容量 | Capacity | 1000，2000N.m |
输出灵敏度 | Rated output | 1.0~1.5mV/V |
零点输出 | Zero balance | ±1% F.S. |
非线性 | Non-linearity | 0.2%F.S. |
滞后 | Hysteresis | 0.2%F.S. |
重复性 | Repeatability | 0.1%F.S. |
蠕变（30min） | Creep(30min) | 0.1%F.S. |
温度灵敏度漂移 | Temp.effect on output | 0.02%F.S./10℃ |
零点温度漂移 | Temp.effect on zero | 0.02%F.S./10℃ |
输入电阻 | Input impedance | 350/700±10Ω |
输出电阻 | Output impedance | 350/700±10Ω |
绝缘电阻 | Insulation | ≥2000MΩ/100VDC |
激励电压 | Recommended excitation | 12V |
最大激励电压 | Maximum excitation | 15V |
温度补偿范围 | Compensated temp range | -10~60℃ |
工作温度范围 | Operation temp range | -20~60℃ |
安全超载 | Safe overload | 120%F.S. |
极限超载 | Ultimate overload | 150%F.S. |
电缆线尺寸 | Cable size | 3m |
防护等级 | IP Class | IP66 |
