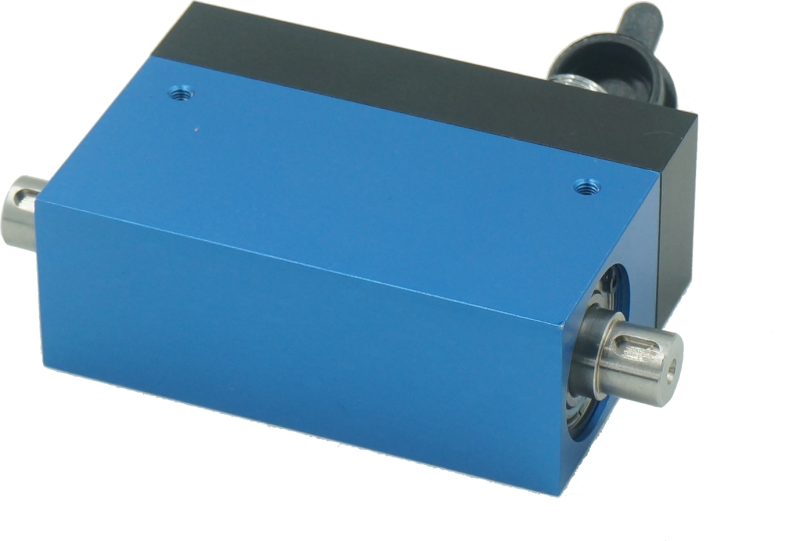

电阻应变为敏感元件和集成电路构成的一体产品;
精度高，性能稳定可靠;
电刷供电,可测量正反两方向扭矩值;
两端均为键连接, 安装使用方便;
最高测量转速4000转/分钟。
Constituted by Strain gauge sensitive components and integrated circuits;
High precision with stable and reliable performance;
This sensor is brush power supply, the output is OK for positive and negative torque signal;
Both ends are keyed;
Maximum speed of torque cannot over 4000 r / min.
参数 | Specifications | 技术指标/Technique |
额定容量 | Capacity | 0.1,0.2,0.3,0.5, 1,2,3,5Nm |
输出灵敏度 | Rated output | 1.0~1.5mV/V |
零点输出 | Zero balance | ±1% F.S. |
非线性 | Non-linearity | 0.2%F.S. |
滞后 | Hysteresis | 0.2%F.S. |
重复性 | Repeatability | 0.1%F.S. |
蠕变（30min） | Creep(30min) | 0.2%F.S. |
温度灵敏度漂移 | Temp.effect on output | 0.1%F.S./10℃ |
零点温度漂移 | Temp.effect on zero | 0.1%F.S./10℃ |
输入电阻 | Input impedance | 350±10Ω |
输出电阻 | Output impedance | 350±10Ω |
绝缘电阻 | Insulation | ≥2000MΩ/100VDC |
激励电压 | Recommended excitation | 12V |
最大激励电压 | Maximum excitation | 20V |
温度补偿范围 | Compensated temp range | -10~60℃ |
工作温度范围 | Operation temp range | -30~60℃ |
安全超载 | Safe overload | 120%F.S. |
极限超载 | Ultimate overload | 150%F.S. |
电缆线尺寸 | Cable size | 3m |
防护等级 | IP Class | IP66 |
